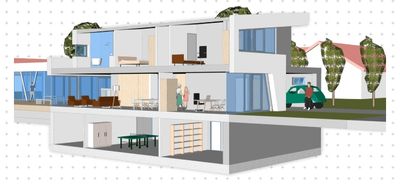

BricsCAD Shape lets you create 3D concepts and prototypes for architecture, mechanical assemblies, 3D printing, and more. Your designs are saved in DWG, and they open directly in any CAD tool that supports DWG, including BricsCAD Pro, BIM and Mechanical.
BricsCAD Shape lets you create 3D concepts and prototypes for architecture, mechanical assemblies, 3D printing, and more. Your designs are saved in DWG, and they open directly in any CAD tool that supports DWG, including BricsCAD Pro, BIM and Mechanical.
When you import SKP files into BricsCAD Shape, they are automatically stitched into solids. BricsCAD Shape supports the latest versions of SKP files for import.
Anything you design in BricsCAD Shape will open directly in BricsCAD BIM for classification and detailing. Develop your designs with PROPAGATE and AutoMatch workflows and get to construction documentation faster and easier than you'd imagine.
BricsCAD Shape is based on the .DWG file format, just like BricsCAD. The models you create in Shape can be opened in any .DWG-based CAD system. You can also open and save .DXF files for collaboration with vector-based applications like Adobe Illustrator® and many CNC machine tool programming products.
BricsCAD Shape lets you create anything, with the power of BricsCAD’s direct modeling engine. Sculpt your ideas immediately in free-form solids. Start with 3D primitives, then push and pull faces and edges by simply moving your mouse. Key in dimensions as required, sketch 2D profiles and extrude, and sweep or revolve them into 3D solids.
Proof is in using a product, so try it out on us! no credit card needed. If you know AutoCAD, you will be able to immediately run this! Open your existing DWG files edit them and then reopen them in AutoCAD! save THOUSANDS and help that IT budget
